The Ultimate Guide to PC Cooling Solutions

Why Proper Cooling Matters

Before diving into specific cooling solutions, it's important to understand why thermal management is crucial for your gaming PC:

Performance Impact

• Thermal Throttling: Modern CPUs and GPUs automatically reduce their clock speeds when they reach certain temperature thresholds to prevent damage
• Performance Consistency: Even before throttling occurs, higher temperatures can cause instability and performance fluctuations
• Boost Clock Behavior: Many modern processors maintain higher boost clocks longer when temperatures are kept lower

Component Lifespan

• Sustained high temperatures accelerate electronic component degradation
• Every 10°C increase approximately doubles the rate of degradation (as a general rule)
• Proper cooling can extend the useful life of expensive components by years

System Stability

• Overheating can cause system crashes, random reboots, and blue screens
• Memory errors become more common at elevated temperatures
• Thermal cycling (repeated heating and cooling) stresses solder joints and can lead to premature failure

Understanding Heat Generation in Gaming PCs

Modern gaming systems generate significant heat, with several key components contributing to the thermal load:

Primary Heat Sources

• CPU: Can generate 65-250W of heat depending on the model and workload
• GPU: Often the largest heat source, producing 150-450W in high-end models
• VRMs (Voltage Regulator Modules): Power delivery components on motherboards that can get very hot, especially with overclocking
• Memory: Modern high-speed RAM and VRAM can generate noticeable heat
• Storage Drives: NVMe SSDs in particular can run hot under sustained workloads

Heat Dissipation Principles

Effective cooling systems work by transferring heat away from components through several mechanisms:

• Conduction: Heat transfers directly from component to heatsink
• Convection: Heated air rises and is replaced by cooler air
• Forced Convection: Fans accelerate air movement to increase heat transfer
• Thermal Radiation: Heat radiates as infrared energy (minimal effect in PC cooling)

Air Cooling Solutions

Air cooling remains the most common approach to PC thermal management due to its reliability, affordability, and ease of maintenance:

CPU Air Coolers

CPU air coolers come in various designs and performance levels:

Tower Coolers

• Vertical heatsink design with one or more fans
• Heatpipes transfer heat from the CPU to aluminum fins
• Performance ranges from entry-level to high-end solutions capable of cooling 150W+ CPUs
• Examples: Noctua NH-D15, be quiet! Dark Rock Pro 4, Cooler Master Hyper 212

Low-Profile Coolers

• Designed for small form factor systems with height restrictions
• Typically sacrifice some performance for compatibility
• Best suited for lower TDP processors
• Examples: Noctua NH-L9i, be quiet! Shadow Rock LP, Scythe Big Shuriken

GPU Cooling

Most graphics cards come with built-in cooling solutions:

• Dual/Triple Fan Designs: Common on mid-range and high-end cards
• Blower-Style: Single fan that exhausts air directly out of the case (less common now)
• Aftermarket GPU Coolers: Options like ARCTIC Accelero or Raijintek Morpheus for advanced users

Case Airflow

Proper case airflow is critical for effective air cooling:

• Positive Pressure: More intake fans than exhaust, helps reduce dust buildup
• Negative Pressure: More exhaust than intake, can improve hot air removal
• Balanced Approach: Equal intake and exhaust, often the most effective

Advantages of Air Cooling

• Reliability: Fewer points of failure compared to liquid cooling
• Cost-Effectiveness: Generally more affordable than liquid cooling solutions
• Maintenance: Requires only occasional dust cleaning
• Safety: No risk of leaks that could damage components

Limitations of Air Cooling

• Size Constraints: High-performance air coolers can be very large
• Noise Potential: May require faster fan speeds for extreme cooling
• Heat Dissipation Ceiling: May struggle with heavily overclocked high-TDP processors
• Aesthetic Limitations: Generally less visually impressive than liquid cooling

Liquid Cooling Solutions

Liquid cooling uses the superior heat transfer properties of liquids to move heat away from components more efficiently:

All-in-One (AIO) Liquid Coolers

Pre-assembled, closed-loop systems that have gained significant popularity:

• Components: Pump/block combo, radiator, fans, and pre-filled tubing
• Sizes: Common radiator sizes include 120mm, 240mm, 280mm, and 360mm
• Installation: Relatively straightforward, similar to installing an air cooler plus radiator mounting
• Maintenance: Minimal, but units typically have a 5-7 year lifespan before potential pump failure or liquid evaporation
• Examples: Corsair H100i, NZXT Kraken X63, Arctic Liquid Freezer II

Custom Liquid Cooling Loops

Custom loops offer the highest performance and customization options:

• Components: Separate CPU/GPU blocks, pump, reservoir, radiator(s), tubing, and fittings
• Cooling Capacity: Can be designed to cool CPU, GPU, and even motherboard components
• Aesthetic Options: Customizable with colored coolants, RGB lighting, and various tubing materials
• Installation: Complex, requiring careful planning and execution
• Maintenance: Requires periodic fluid changes and cleaning (typically every 6-12 months)

Advantages of Liquid Cooling

• Cooling Performance: Superior heat dissipation, especially for high-TDP components
• Noise Levels: Can operate more quietly than air cooling for the same thermal performance
• Space Efficiency: Moves heat away from the CPU area, reducing congestion around the socket
• Aesthetics: Often considered more visually appealing, especially with RGB options

Limitations of Liquid Cooling

• Cost: Significantly more expensive than air cooling, especially custom loops
• Complexity: More components mean more potential points of failure
• Risk: Liquid leaks, while rare, can be catastrophic for components
• Maintenance: Requires more attention and periodic upkeep compared to air cooling

Fan Selection and Optimization

Regardless of whether you choose air or liquid cooling, fan selection plays a crucial role in cooling performance:

Fan Types and Characteristics

• Airflow Fans: Optimized for moving large volumes of air with minimal restriction (ideal for case fans)
• Static Pressure Fans: Designed to push air through restrictions like radiators and dense heatsinks
• Size Options: Common sizes include 120mm, 140mm, and 92mm (with larger fans typically running quieter for the same airflow)
• Bearing Types: Sleeve bearing, ball bearing, fluid dynamic bearing (FDB), and magnetic levitation each offer different noise and longevity characteristics

Key Fan Specifications

• CFM (Cubic Feet per Minute): Measures airflow volume
• Static Pressure (mmH₂O): Indicates how well a fan can push air through restrictions
• Noise Level (dBA): Measures acoustic output
• RPM Range: The speed range the fan can operate at
• PWM Support: Allows for precise speed control based on temperature

Fan Control and Optimization

Properly configured fan curves can significantly improve the balance between cooling performance and noise:

• BIOS Fan Control: Most motherboards allow custom fan curves based on CPU temperature
• Software Solutions: Programs like SpeedFan, Argus Monitor, or motherboard utilities allow more granular control
• Fan Controllers: Dedicated hardware that provides manual or automated fan speed adjustment

Thermal Interface Materials

The connection between heat-generating components and coolers is crucial for efficient heat transfer:

Thermal Pastes

• Purpose: Fill microscopic gaps between CPU/GPU and cooler surfaces
• Types: Silicon-based, metal-based (with liquid metal being the highest performing but riskiest)
• Application: Small pea-sized dot or thin spread depending on the CPU size and paste consistency
• Replacement: Recommended every 2-3 years or when removing the cooler
• Popular Options: Arctic MX-4, Thermal Grizzly Kryonaut, Noctua NT-H1

Thermal Pads

• Purpose: Used for components like VRMs, VRAM, and chipsets where direct contact with a heatsink is needed
• Thickness: Available in various thicknesses (0.5mm to 3mm) to accommodate different height gaps
• Thermal Conductivity: Measured in W/mK, with higher values indicating better heat transfer
• Replacement: Should be replaced when dried out or when removing heatsinks

Cooling for Specific Components

While CPU and GPU cooling receive the most attention, other components also benefit from proper thermal management:

VRM Cooling

• Voltage regulator modules can run extremely hot, especially with overclocking
• Most high-end motherboards include VRM heatsinks
• Ensure adequate airflow over the motherboard VRM area
• Some custom water cooling setups include dedicated VRM blocks

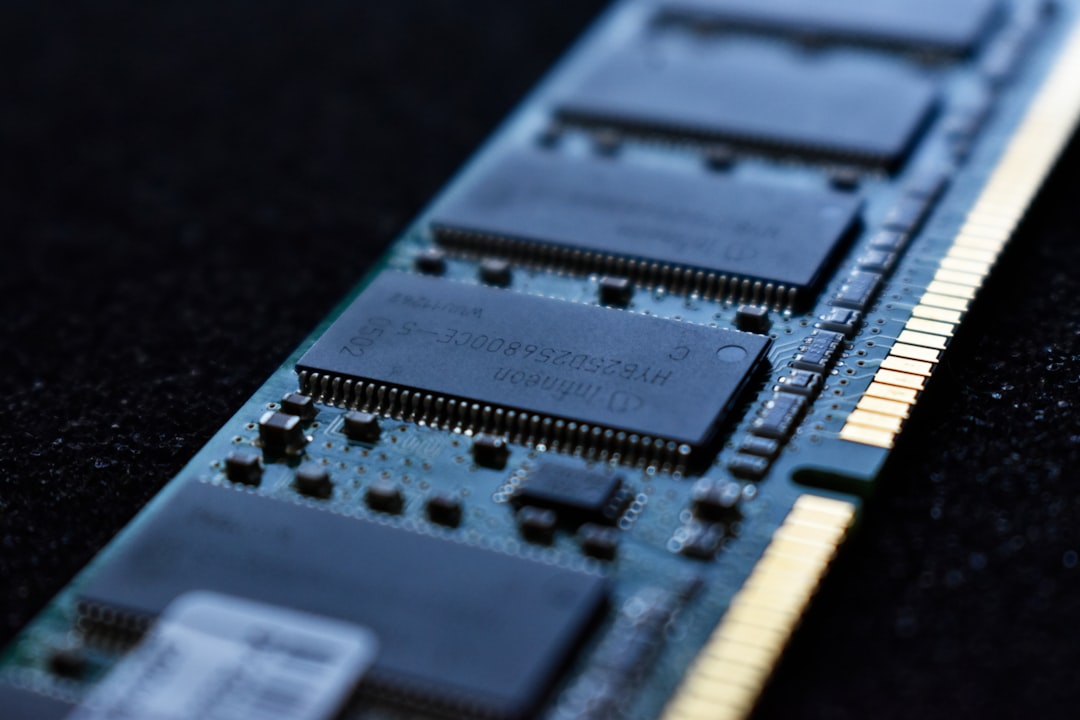

Memory Cooling

• Modern high-speed RAM can benefit from cooling, especially when overclocked
• Options range from RAM with integrated heatspreaders to dedicated RAM cooling fans
• Typically not a critical concern unless pushing extreme overclocks

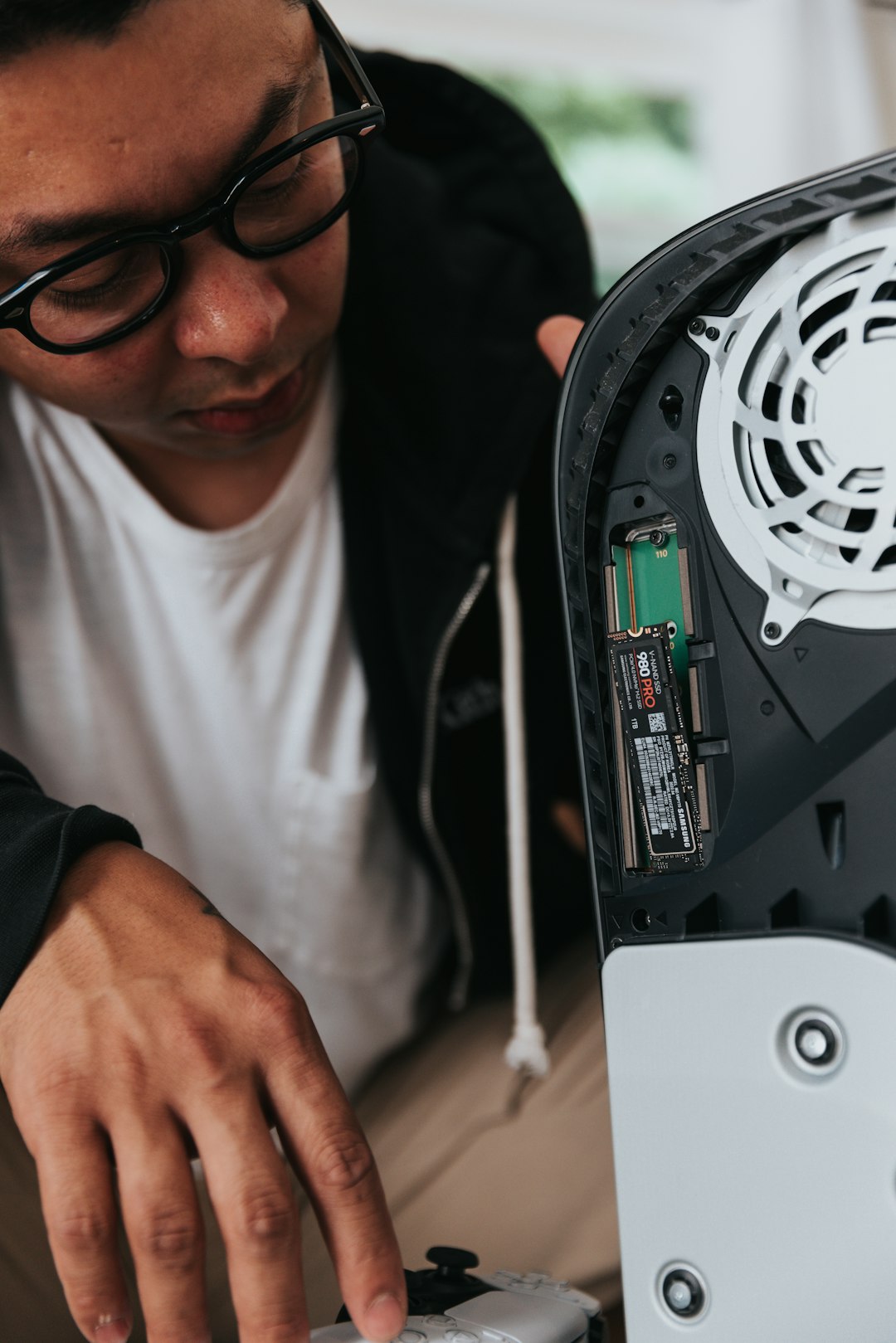

M.2 SSD Cooling

• High-performance NVMe drives can thermal throttle under sustained loads
• Many motherboards include M.2 heatsinks
• Aftermarket heatsinks are available for boards without built-in cooling
• Ensure drives have some airflow and aren't completely obstructed

Case Selection for Optimal Cooling

The case itself plays a significant role in your system's thermal performance:

Key Case Features for Cooling

• Airflow Design: Look for cases with minimal obstructions to airflow
• Fan Mount Locations: More mounting positions provide greater flexibility
• Dust Filtration: Filters prevent dust buildup but should be easily removable for cleaning
• Radiator Support: Confirm compatibility with your chosen liquid cooling solution
• Cable Management: Good cable routing options help maintain unobstructed airflow

Case Types and Their Cooling Characteristics

• Mesh-Front Cases: Excellent for airflow but may allow more dust ingress
• Solid-Front Cases: Often more aesthetically clean but restricted intake airflow
• Open-Air Cases: Maximum airflow but no dust protection and potentially louder operation
• Small Form Factor Cases: Challenging for cooling due to space constraints, requires careful component selection

Ambient Temperature Considerations

Your PC's cooling system doesn't exist in isolation—ambient conditions matter:

• Room temperature directly affects your cooling efficiency (cooling can only bring components to near ambient temperature)
• Consider PC placement: avoid direct sunlight, enclosed spaces, or placement near heaters
• In warm climates or during summer, you may need more aggressive cooling solutions
• Room airflow and ventilation can impact system temperatures

Monitoring and Troubleshooting

Regular monitoring helps catch thermal issues before they cause performance problems or hardware damage:

Temperature Monitoring Tools

• HWiNFO: Comprehensive hardware monitoring with detailed sensor readings
• MSI Afterburner: Popular for GPU monitoring with on-screen display capabilities
• Core Temp: Straightforward CPU temperature monitoring
• Open Hardware Monitor: Open-source monitoring solution with a clean interface

Common Cooling Problems and Solutions

If you're experiencing high temperatures, consider these common issues:

• Improper Thermal Paste Application: Too much or too little paste can impair heat transfer
• Dust Buildup: Regular cleaning of heatsinks, fans, and filters is essential
• Inadequate Case Airflow: Additional fans or reconfiguration may be needed
• Cooler Undersized for TDP: Your cooler may not be capable of handling your CPU's heat output
• Fan Failure: Check that all fans are operating at expected speeds
• Pump Failure (for liquid cooling): Listen for unusual noises or check pump RPM
• Airflow Obstruction: Poor cable management or improperly placed components can block airflow

Cooling and Overclocking

If you plan to overclock, cooling becomes even more critical:

• Overclocking increases heat output significantly, often beyond the CPU's rated TDP
• More aggressive cooling solutions are required for stable overclocks
• Consider high-end air coolers or 280mm+ AIOs for serious CPU overclocking
• GPU overclocking may require custom fan curves or aftermarket cooling solutions
• Monitor temperatures carefully during the overclocking process
